pyobsmod plots#

If you don’t necessarily want to work with a class instance, then you can use the pyobsmod.plots module to plot your data directly. Here are some examples. All of the examples provided here work also with the pyobsmod.Dataset class directly, try it out!

First, import required packages.

import matplotlib.pyplot as plt
import numpy as np
import pyobsmod.plots as pp

from pyobsmod import load_dataset_example

Load some example data.

ds = load_dataset_example()
obs = ds.obs
mod = ds.mod
time = ds.df.index

Let’s take a look at the different plotting options. The first one is a simple scatter plot with the reference line already plotted for you. If needed, you can also add some additional statistics, by passing a list of valid names to the which_stats argument.

ax = pp.scatter_plot(obs, mod, which_stats=["rmse", "r2"])
plt.show()
../_images/pyobsmod-plots_2_0.png

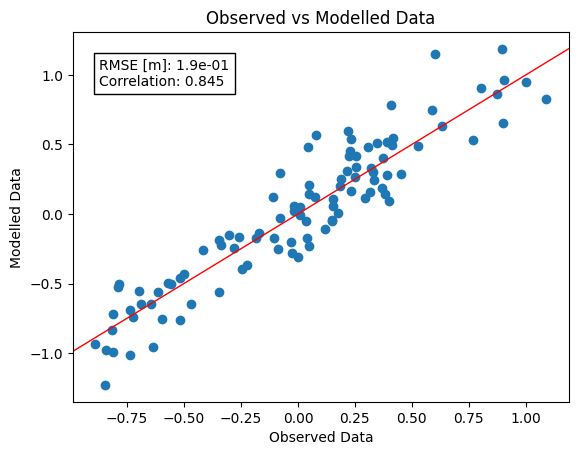

You can also give alternative names to the statistical quantities. Just pass names as well. Make sure that they are in the same order. By the way, you can also pass an alternative formatting string if the default does not work for you.

ax = pp.scatter_plot(
    obs,
    mod,
    which_stats=["rmse", "r2"],
    names=["RMSE [m]", "Correlation"],
    fmt=[".1e", ".3f"]
)
../_images/pyobsmod-plots_3_0.png

If you want to modify the identity line or the textbox you can pass all the typical matplotlib keywords to the function in the form of a dictionary. For example for a dashed identity line and a larger fontsize of the textbox that we want to put in the right bottom corner of the plot:

ax = pp.scatter_plot(
    obs,
    mod,
    ["rmse", "r"],
    names=["RMSE [m]", "Correlation"],
    idline_kws=dict(ls="--"),
    textbox_kws=dict(loc="lower right",
    prop=dict(size=18)),
)
plt.show()
../_images/pyobsmod-plots_4_0.png

Continuing like this, you can refine your plot as you please. There is another scatter plot function, which is very similar, but uses seaborn’s seaborn.jointplot as a basis. This gives you marginal plots and a regression estimate (with standard deviations) in addition to the identity line and the scatter plot of your data set. As before you can tweak the plot as you like by passing keyword dictionaries, for this take a look at the seaborn web page. Here is the simplest example:

grid = pp.scatter_plot_sns(obs, mod)
plt.show()
../_images/pyobsmod-plots_5_0.png

Unfortunately, since seaborn.jointplot creates its own figure instance, it is not possible to use the results as a subplot. For this, a less elaborated, but more flexible function is provided with pyobsmod.plots.scatter_plot_joint. It still gives you marginal plots and a regression estimate, but without the standard deviations. To use it in a subplot, you can pass the axis to the function as usual:

fig, axs = plt.subplots(1, 2, figsize=(12, 5))

axs_joint = pp.scatter_plot_joint(obs, mod, ["r2", "rmse"], ax=axs[0])
axs_joint[0].legend(loc="lower right")

axs[1].plot(obs, label="Observed")
axs[1].plot(mod, label="Modelled")

axs[1].legend(loc="lower right")

plt.show()
../_images/pyobsmod-plots_6_0.png

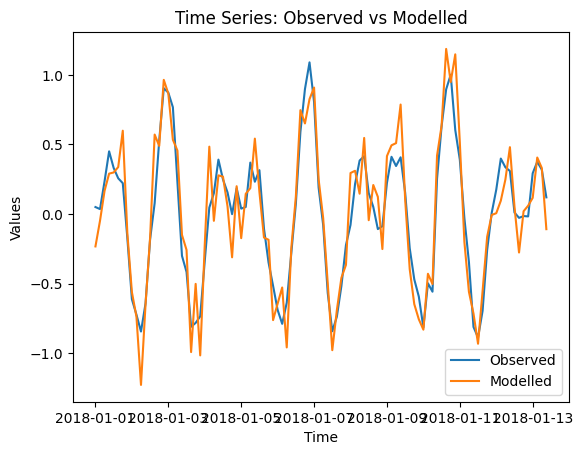

If you are interested in the evolution of your time series over time, you can use the pyobsmod.plots.time_series_plot function. As before you can compute and plot some statistical quantities along with it and if you want you can also pass a time array, which will be used as the x-axis.

ax = pp.time_series_plot(obs, mod, time)
plt.show()
../_images/pyobsmod-plots_7_0.png

You can also use these plots as subplots in a larger figure. You simply can pass the axis to the function, for more information scroll through the pyobsmod Dataset tutorial.

Take a look at our API documentation to dig deeper and look at the matplotlib and seaborn documentations to find out more about the keywords to tune your plots accordingly!
